Description

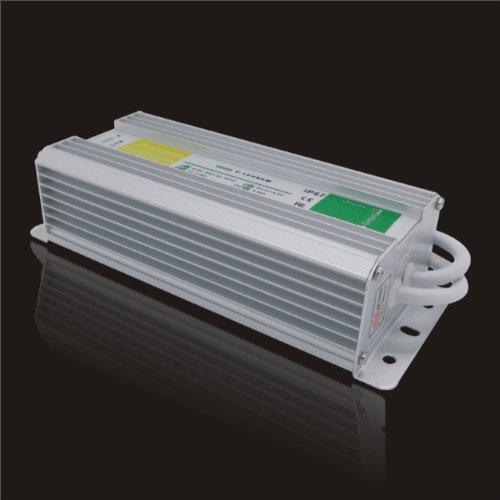

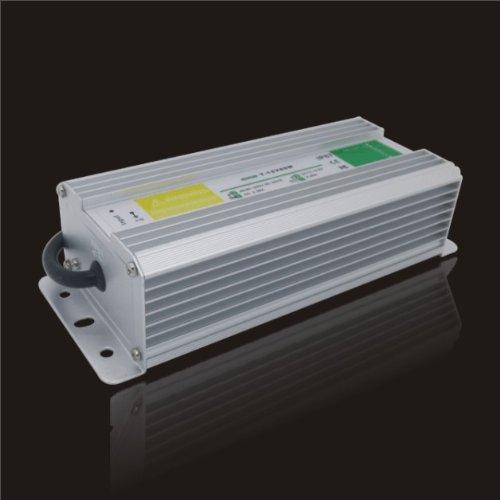

- 12V 80W Waterproof LED constant voltage LED switching power supply
- Power : 80W
- AC input voltage : 90V-260VAC
- AC Input Frequency : 50 ~ 60Hz
- Size : 220*30*20 MM
Product Name : 12V80W Waterproof LED Power Supply Constant Power: 80W Size : 153 * 71 * 43 MM Outer material: Aluminum Wire Requirements : VDE cable Protection class : IP67 AC input voltage : 90V-260VAC AC Input Frequency : 50 ~ 60Hz ( When cold ) Input Inrush Current : 6.7A/230V Input leakage current : <0.5mA / AC 230V Line regulation ( full load ): 0.5% Load regulation : 1% Output stability : 0.5 % typical The output voltage trim range : 10% Output ripple ( resistive load ): 100mVp-p typical Output Overload Protection : 115 ~ 150% Dielectric Strength: Input to -1500VAC/1min Input to output -1500VAC/1min Output to ground -500VAC/1min Insulation resistance :> 50M Hold Time : 20ms typical at full load Rise time : 50ms typical at full load Temperature coefficient : 0.02 ~ 0.05% / Working temperature : -10 ~ +50 , 20% ~ 95% RH ( non-condensing ) Storage temperature : -20 ~ +85 , 20% ~ 95% RH ( non-condensing ) Time between failures (MTBF): 100,000 hours Safety standards : Designed to meet GB4943, UL1950, EN60950 EMC standard: Design GB9254, EN55022 Cooling forms: natural cooling Package Included: 1pcs x 12V 80W waterproof LED Driver Transformer Power Supply
