TEENGSE

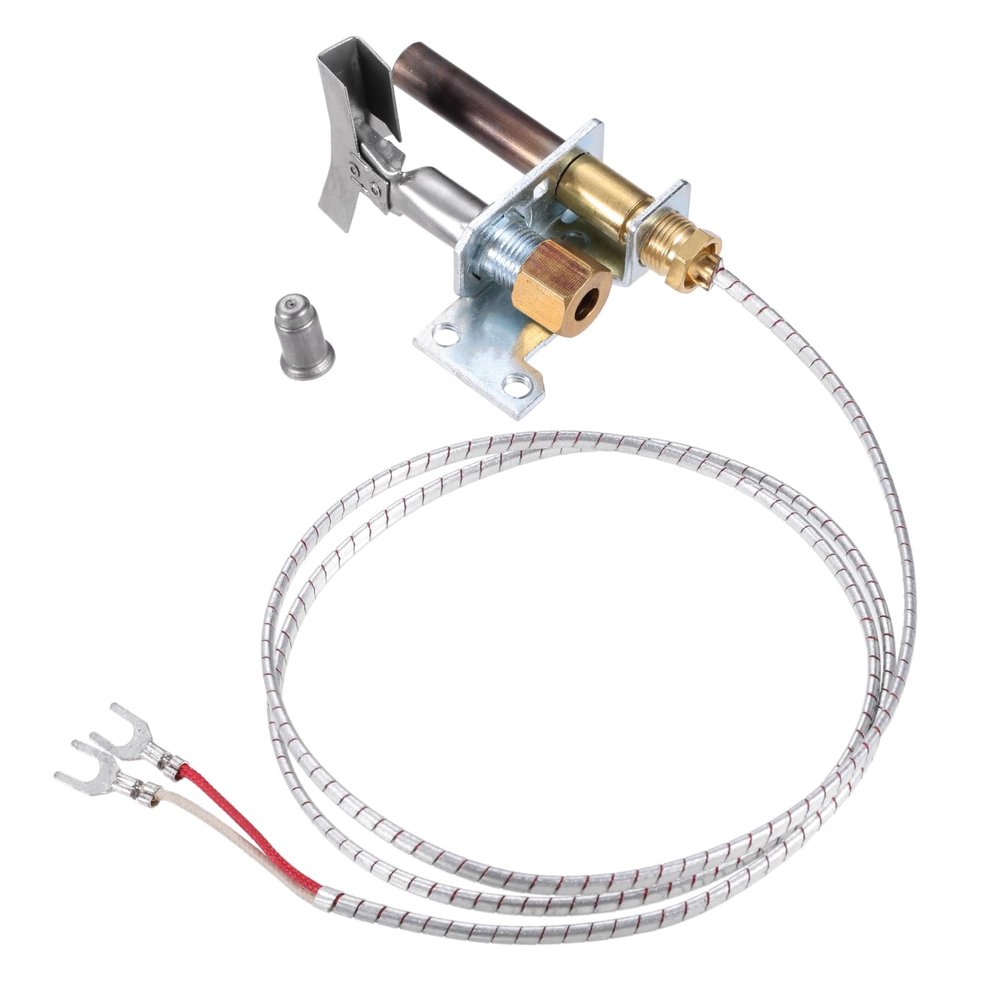

750mV Thermopile Pilot Burner 1/4" Inlet NG LPG Orifices for Gas Fryers
£54.76
£91.27
-
Order within to get between -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- FUNCTION: The inlet gas tube size is 1/4in , flame pattern 3 ways, hood width 1.5in. The primary function of pilot burner is to ensure that the permanent pilot flame is lit to properly ignite the main burner gas when heat is required. Thermopiles are used in gas applications to detect the presence of a flame by shutting off potential gas flow.
- NATURAL GAS/LGP GAS NOZZLE: This pilot burner and 750 millivolt thermopile assembly comes with two nozzles for both natural gas and LGP gas. When you receive LP gas pilot burner assembly, the built-in component is a LGP gas nozzle, and the external one is a natural gas nozzle.
- REPLACEABLE MODELS:Pilot burner can be replacement for Cecilware 179A.F180A.179F.F180A.GMF180A.GMF180F; Imperial 0310.1095-16.1095-26; Royal Range 3231.3232; Tri-Star 300231.TS-1095-16.TS-1095-26;Hobart 00-412212-00001.00-412212-00002.00-412212-00007.00-412212-1/2/7.00-721028-00001.112212-1.112212-2.21028-1.412212-00001.412212-00002.412212-00007.412212-1.412212-1/2/7.412212-2.412212-7.5114677.21028-00001.721028-1; Grindmaster 180A.F179A.F179A/F180A.F179F.F180A.F180F.
- COMPATIBLE MODELS: 750mv thermopile compatible with VULCAN HART fryer GF(91G,92G), HF91G, HF92G (OLD 7891G & 7892G),TK-35. SERIES: EF 1GR45M, 1GR65M, 1GR85M, 1GRC35, 1GRC45, 1GRC65, 1GRD45,1GRD65, 1GRS35, 1GRS45, 1GRS65, EF3, EF4, EF5, GR35, GR35F,GR45, GR45F, GR65, GR65F, GR85, GR85F, GRC35F, GRC45F,GRC65F, GRC85F, GRD35F, GRD45F, GRD65F, GRD85F, GRS35F,GRS45F, GRS65F, GRS85F SERIES: 7400, 7500, 7800; Cecilware fryer FMP 30, 40B, 403, 65, FMS 30, 54; Imperial Fryer Series:IF, IHR, IR; TRI-STAR FRYER; WOLF FRYER WTF-35.
- EASY TO INSTALL: The inlet of pilot burner can be directly connected to 1/4 inch tube, and the two lead connectors are connected to other gas devices. Easy to install without wasting time. Do not press or pull hard on the connection between the wire and the thermopile, as it may cause short circuit and low voltage problems.
