Description
- Low level current clamp measures up to 5 A ac
- Take accurate readings without breakings the circuit
- CAT III 600 V (For insulated conductors only)

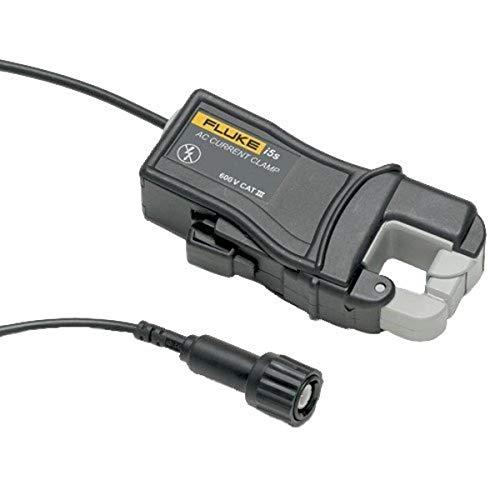

A pack of 3 pieces of the i5s current clamps, specially configured to provide low current accuracy while taking measurements on secondary current transformers. This cost-saving 3-pack is perfect for use with 3-phase tools such as the Fluke 434 or Fluke 435. Compact shape makes transporting and storing convenient. Take accurate readings without breaking the circuit. CAT III 600 V (For insulated conductors only). Nominal current range: 5A. Continuous current range: 10mA to 6A. Maximum non-destructive current: 70A. Lowest measurable current: 10mA. Basic accuracy: 10mA to 1A: 1 percent + 5 mA, 1A to 5A: 1 percent. Useable frequency: 40 Hz to 5 kHz. Output levels: 400 mV/A. Input load impedance: greater than 1 mega ohm in parallel with up to 47 pF. Crest factor: less than or equal to 3, add 0.7 percent to accuracy. Safety: CAT III 600V per IEC/EN61010-1, Pollution Degree 2. Maximum voltage: 600V AC. Maximum conductor diameter: 15mm. Output cable length: 2.5m. With BNC adapter. Measures 116mm length by 43mm width by 23mm height.
