Description

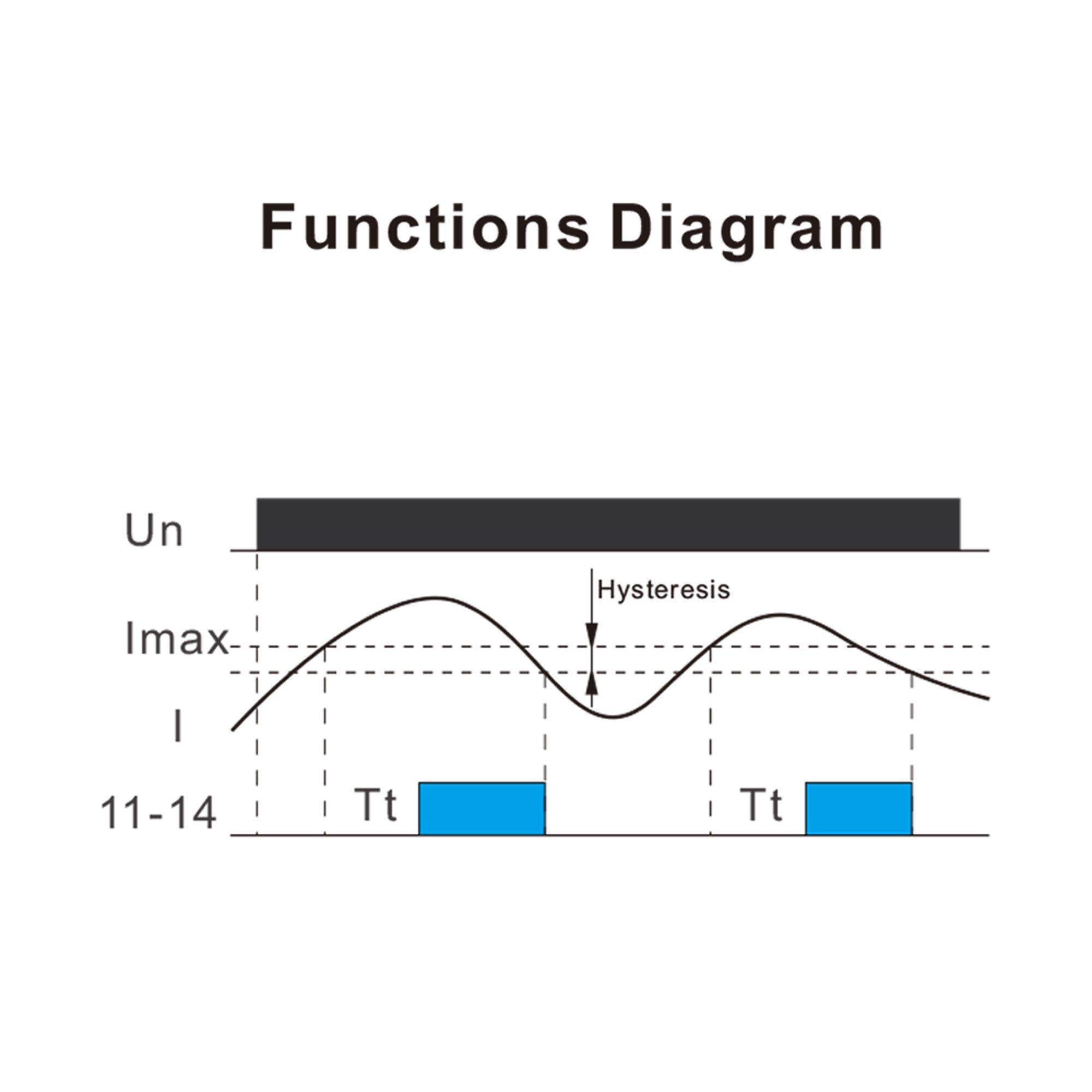

- Adjustable delay 0.5-10s to eliminate short current peaks.

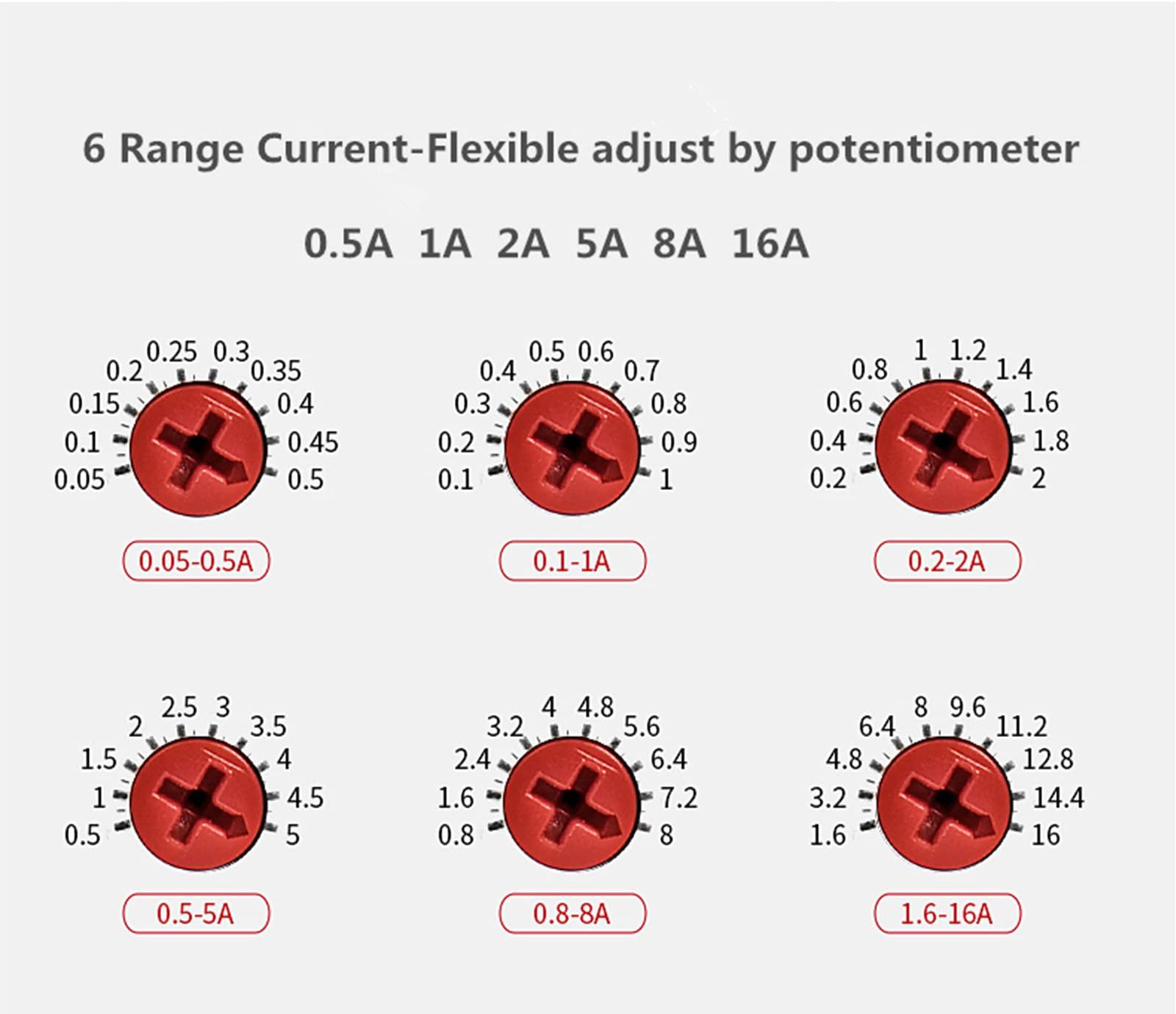

- Flexible adjustment by potentiometer, choice of 6 ranges:AC0.05-0.5A; AC0.1-1A; AC0.2-2A; AC0.5-5A; AC0.8-8A; AC1.6-16A

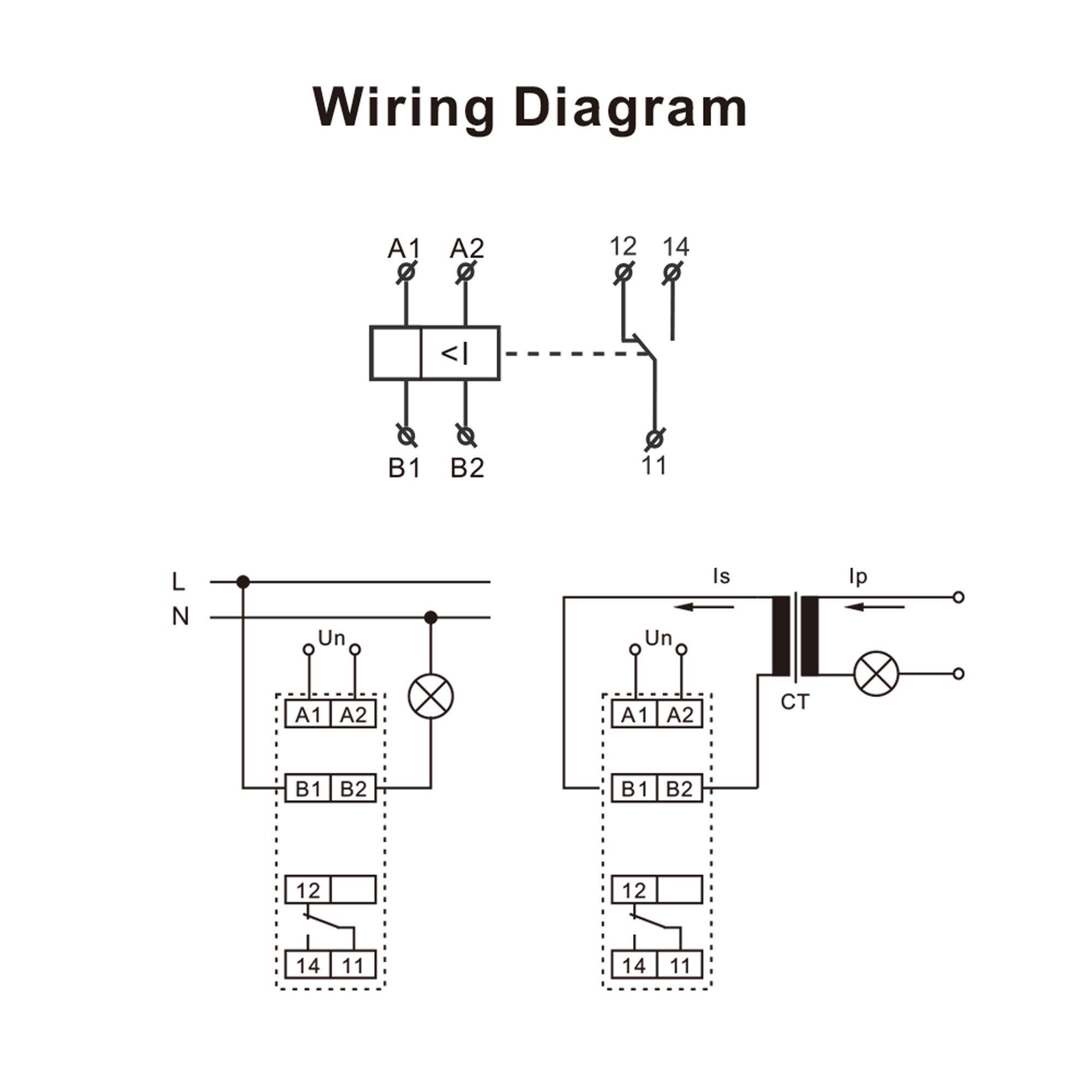

- Possible to use for current scanning from current transformer.
- Universal supply AC/DC24-240V.

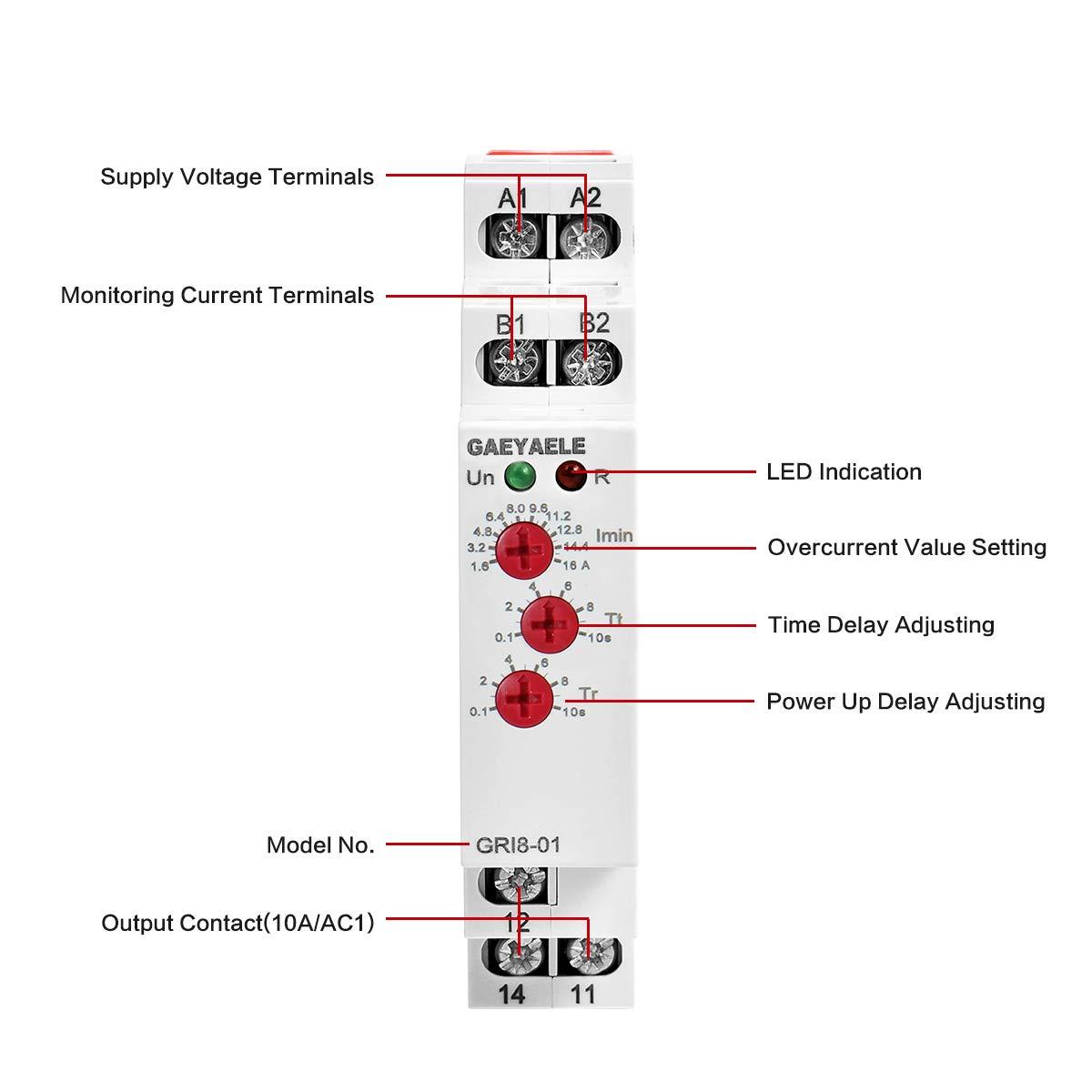

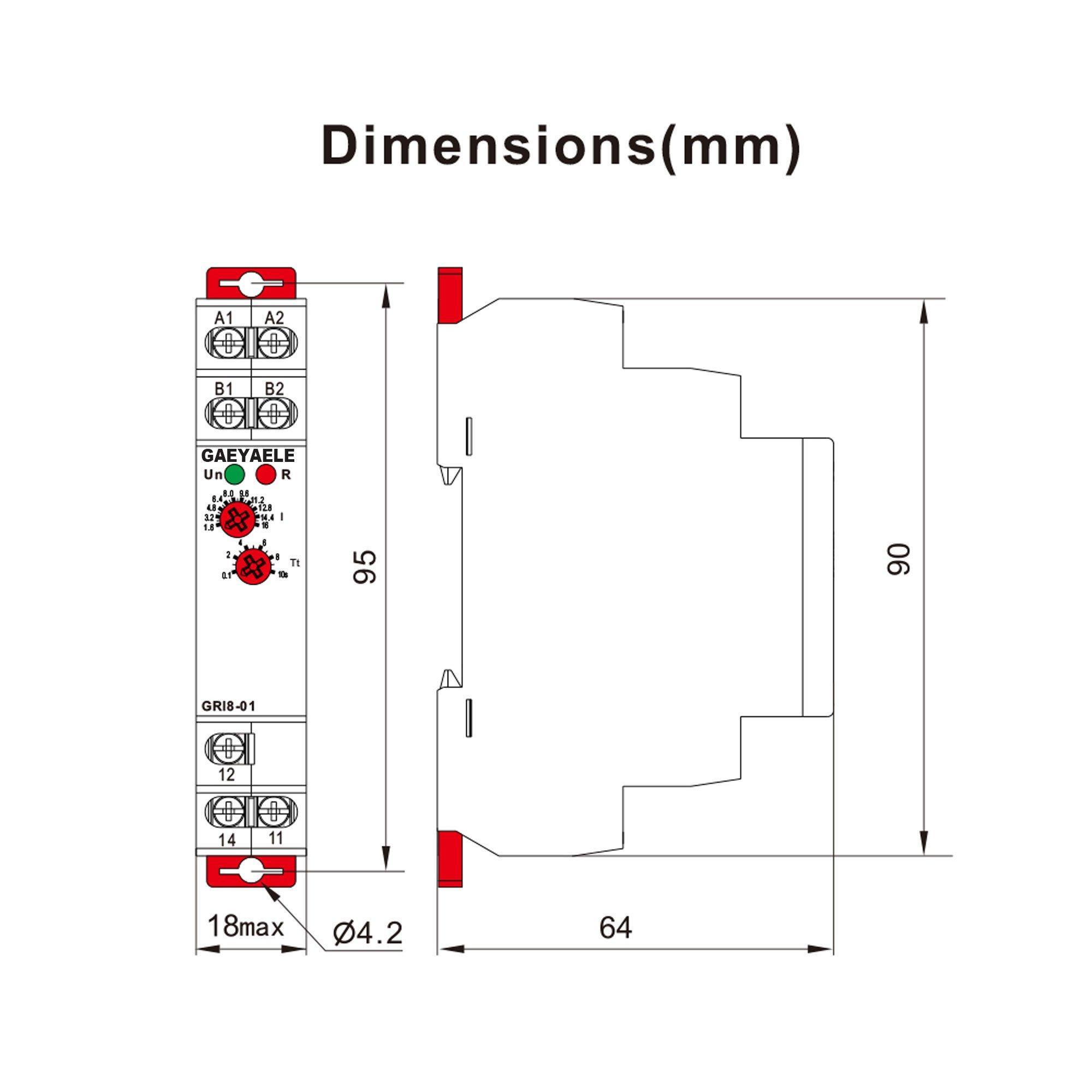

- Relay status is indicated by LED.1-MODULE,DIN rail mounting.
