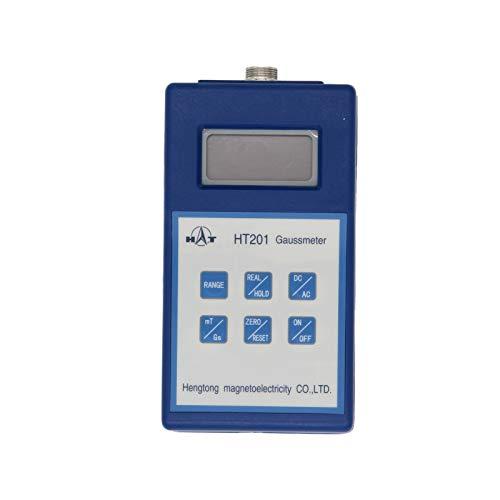

Description
- Specifications: Range:0~200mT~2000mT,Calibrated with Accuracy : +/- 2%
- Measured magnetic field: DC magnetic field (Static) / AC magnetic field (Dynamic)
- Frequency range: 10Hz~ 200HZ
- Measure 0-2000mT, equivalent 10 Gauss to 20,000Gauss
- The battery cannot be transported by air.We have to remove the battery from the machine. So you should buy the battery No.9 (9V) at your local store. It is very cheap.

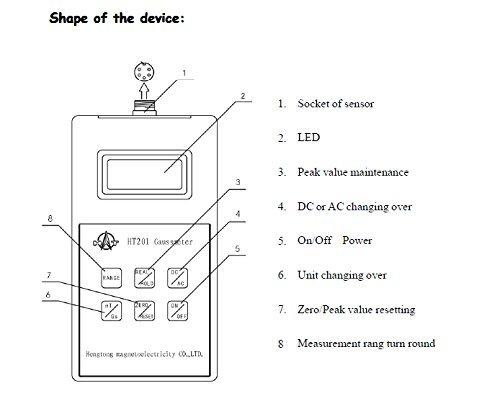

Function:DC/AC measurement button
Display the Piroity of Pole, on LCD "N" or "S
Hold Button for data hold.
Measure 0-2000mT, equivalent 10 Gauss to 20,000Gauss
Unit Also display mT and Gs unit by select the key button
Weight: 300g
Display: 4 1/2 LCD
Units: mT / GS
Notes:1mT=10GS
Ambient temperature: 5~40
Relative humidity:20%~80%
Power supply: 19 volt battery
Dimension: 160mm88mm36mm
Resolution:
DC1 :0.00~ 200.00mT 0.01mT
DC10: 0.0~ 2000.00mT 0.1mT
AC1 : 0.00~ 200.00mT 0.01mT
AC10: 0.0~ 2000.00mT 0.1mT
1. Don't attempt to repair,or disassemble,and any reconstruct this instrument.
2. Use onlu recommended power accessories.
3. Don't connect the terminals of the outer power supply reversely.the inner is plus,the outer is minus.Don't drop this instrument or the probe down ground.It'll be damaged by strong vibration.Do not allow hands or other objects with dirt to touch the probe.
4. Avoid using,placing or storing the instrument in places subject to strong sunlight or high temperature,so as to humidity,water,oil,power,rustair,vibration and others.
5. It would be used to temperature range or store up need to comply as appointment.
6. You should not moving the instrument rapidly between hot and cold temperature to avoid condensation.
7. Never place the instrument in close the machine generating strong magnetic field,such as magnetcharger, demagnet coil,microwave oven,electric welding equipment electric motor and etc.
8. In conclusion,we suggest you to calibrate the instrument in time.
