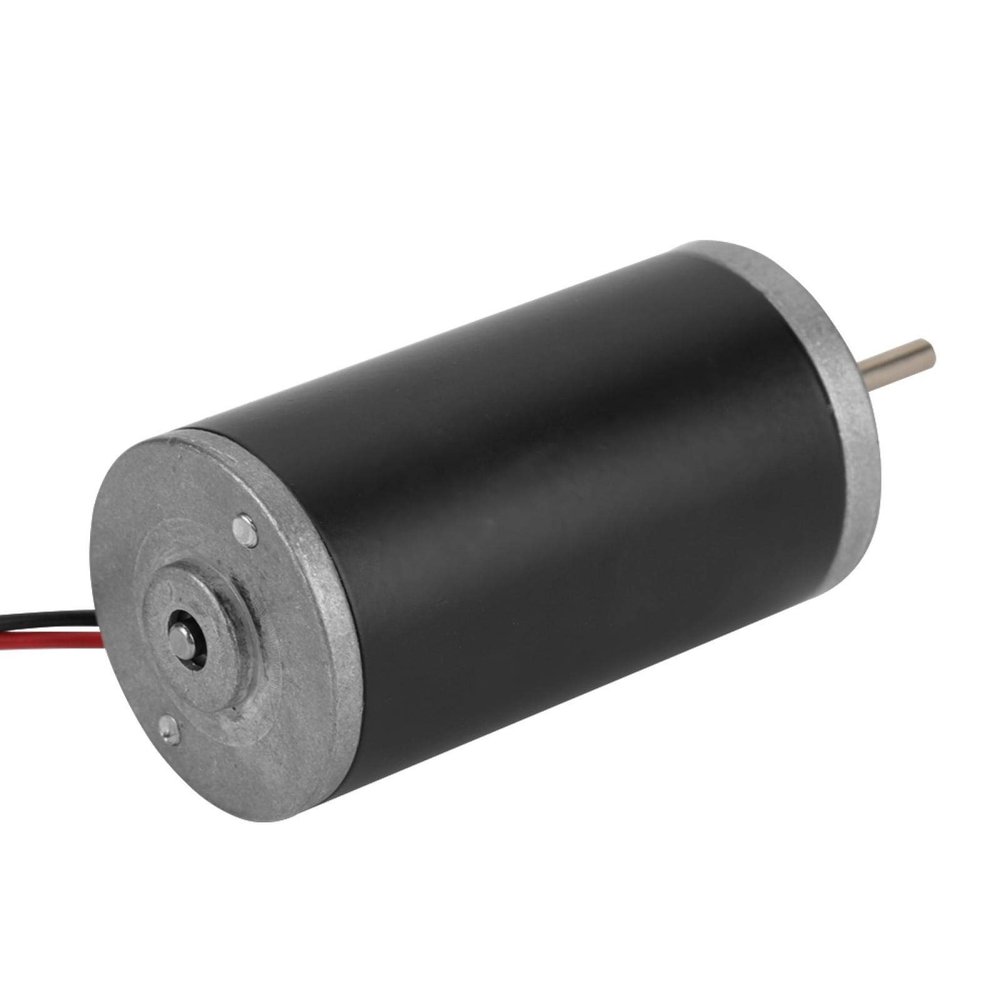

Permanent magnet DC motor, 31ZY 6V/12V/24V DC brush motor 3500-8000 rpm, DC carbon brush motor Electric motor with high and low(12V8000 turn, Blue)

Description

• It uses precision machining, magnetic material and insulation and is characterized by stable and properties.
• This DC motor is characterized by a large and low-noise, stable performance
• The motor consists of a metal gear, wear-resistant, prevents tooth breakage, i.e. with a long service life.
• This DC motor supports clockwise and counter-clockwise rotation.
• This motor consists of a pure copper wire coil with low heat generation and low loss.

Functions: It uses precision machining, magnetic material and insulation and is characterized by stable and properties. This DC motor is characterized by a large and low-noise, stable performance The motor consists of a metal gear, wear-resistant, prevents tooth breakage, i.e. with a long service life. This DC motor supports clockwise and counter-clockwise rotation. This motor consists of a pure copper wire coil with low heat generation and low loss.

Technical data:
Model: 31ZY
Outside diameter: 31 mm
Shaft length: 19 mm
Shaft diameter: 3 mm
type (optional): 6 V 4000 U/min, 12 V 4000 U/min, 12 V 8000 U/min, 24 V 3500 U/min, 24 V 5000 U/min, 24 V 8000 U/min
Weight: 165 g
wiring:
CW: red: "+", black: "-"
CWW: red: "-", black: "+"

Working voltage V (optional) 6V12V12V24V24V24V
Idling current mA 180 350 110 200 200
41
Idling speed rpm400080004000500080003500
Nominal force if applicable .cm100200100200200150
Nominal speed rpm320065003200400066002500
Nominal current A 0.8 1.6 0.5 0.6 1.0 0.3
Force of the blocked rotor if necessary 500 1000 600 800 1200 400
Blocked rotor current A 3.3 6.5 2.3 2.2 4.4 0.8

Package includes:
1 x motor
