Description
- This is a Truth hardware window sill mounted replacement right hand casement operator (as viewed from the inside looking out (please review TH 23022 for left hand casement operator)

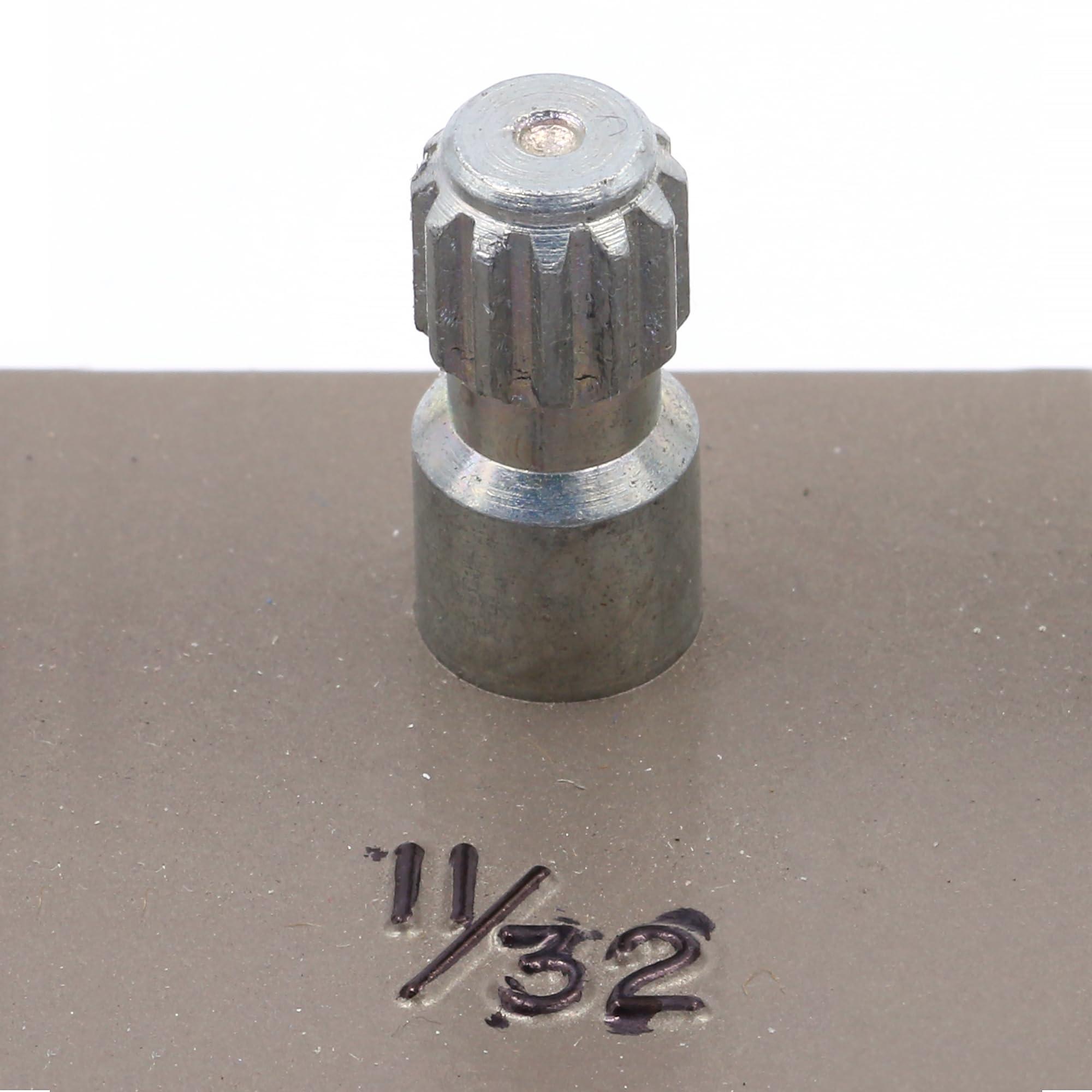

- Heavy duty diecast zinc construction includes a white cover and handle that fits the operators 11/32 inch stem
- Opens the window to a full 90 degrees and will work with Prime-Line track item TH 22397

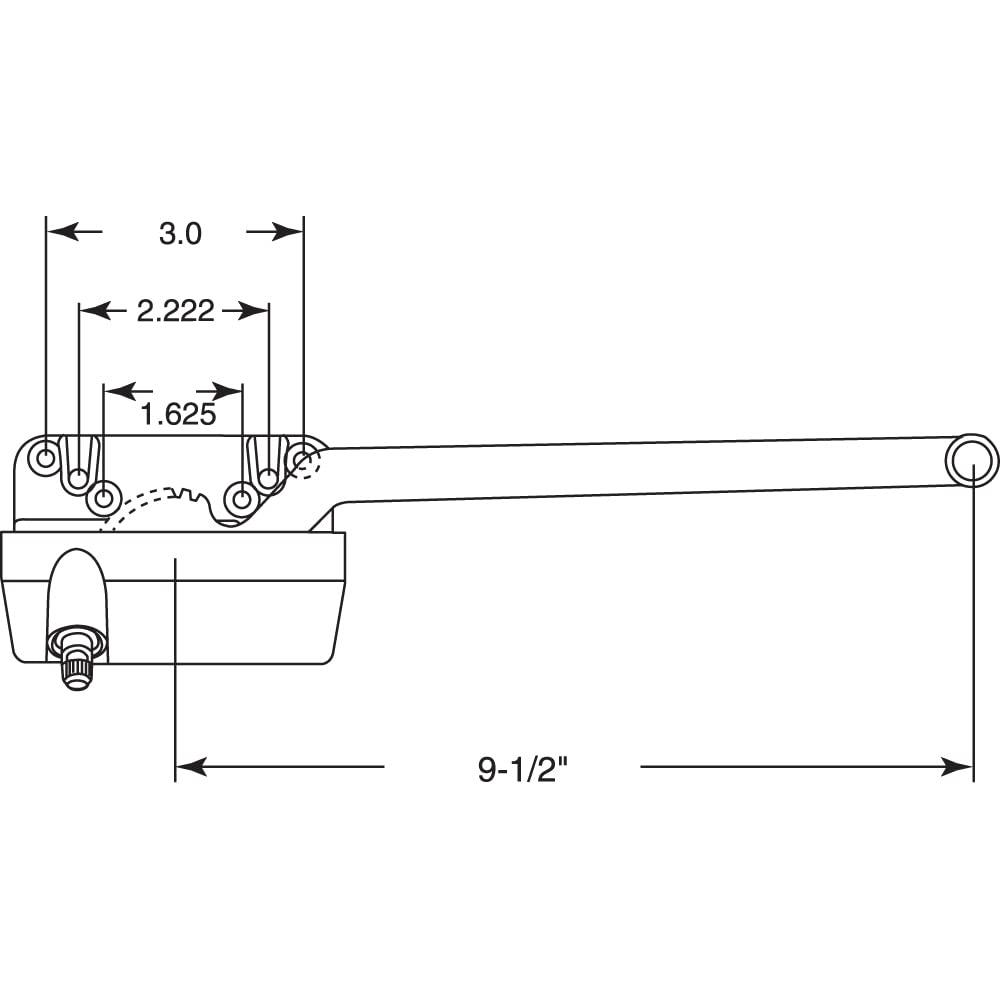

- Mounting holes 1 5/8 inch, 2 7/32 inch and 3 inch, arm length 9-1/2 inch from the middle of the crank operator while closed to the center of the guide button, guide button is 9/16 inch diameter and 3/16 inch thick
- Please refer to the line art drawing for dimensions and compare with your original item before purchasing (not universal)

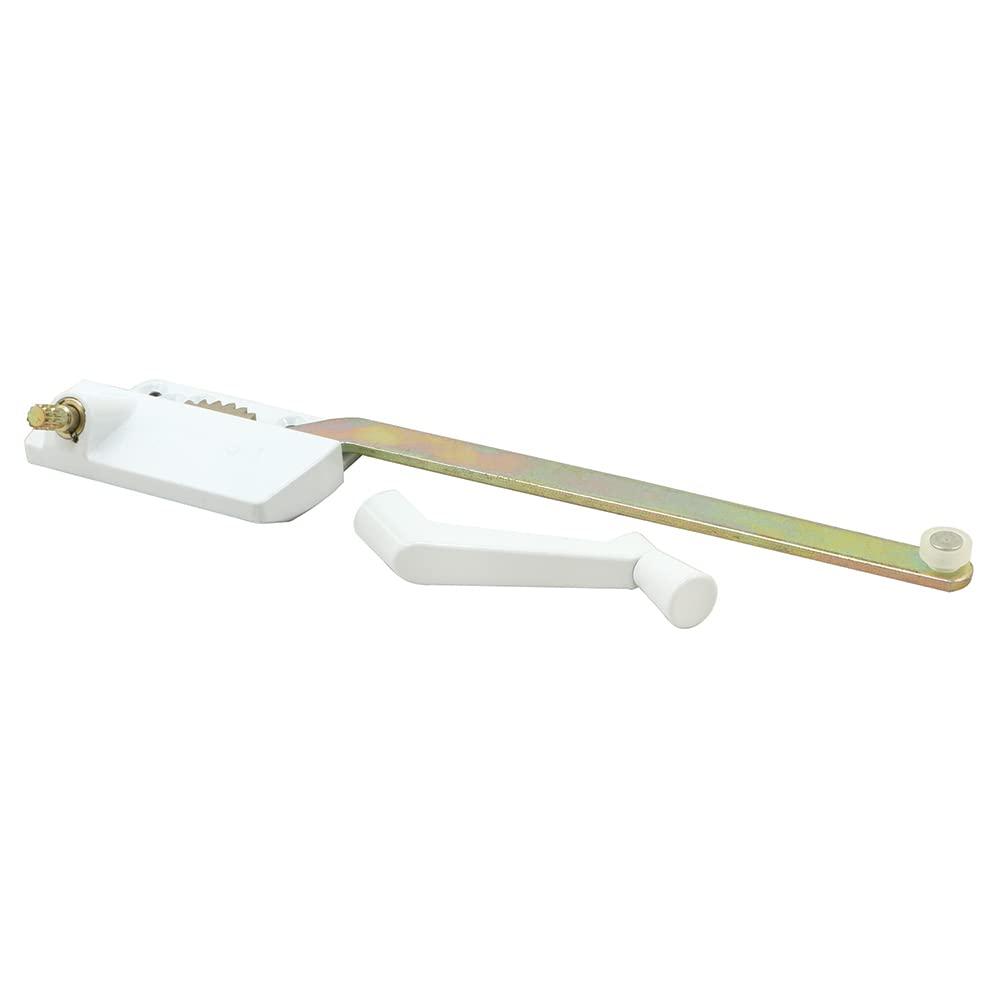

This is a white finish right-handed, 13-1/2 inch single arm operator. It is made of heavy-duty diecast zinc with the baked on white finish. The steel arm, worm drive and gears are protected with a corrosive resistant finish, and it opens to a full 90 degrees. The plastic roller on the end of the arm insure a smooth operation as it slides through the Prime-Line part TH 22397 track. When installing, the housing easily fastens down to the window sill.
